Concord Perforated Wall Panels
Prefabricated Timber Slatted Acoustic Panels
Split Baton hanging methodology for wall panels. Our slatted timber acoustic systems can complement a wide range of room types.
They are beneficial both acoustically and aesthetically. For ceilings, wall panelling & balustrades etc.
Sport England preferred colours available through our Laminate range or with a Painted RAL finish, available up to class C performance with 50mm build-out.
Fire resistant core boards with capping and skirting available.

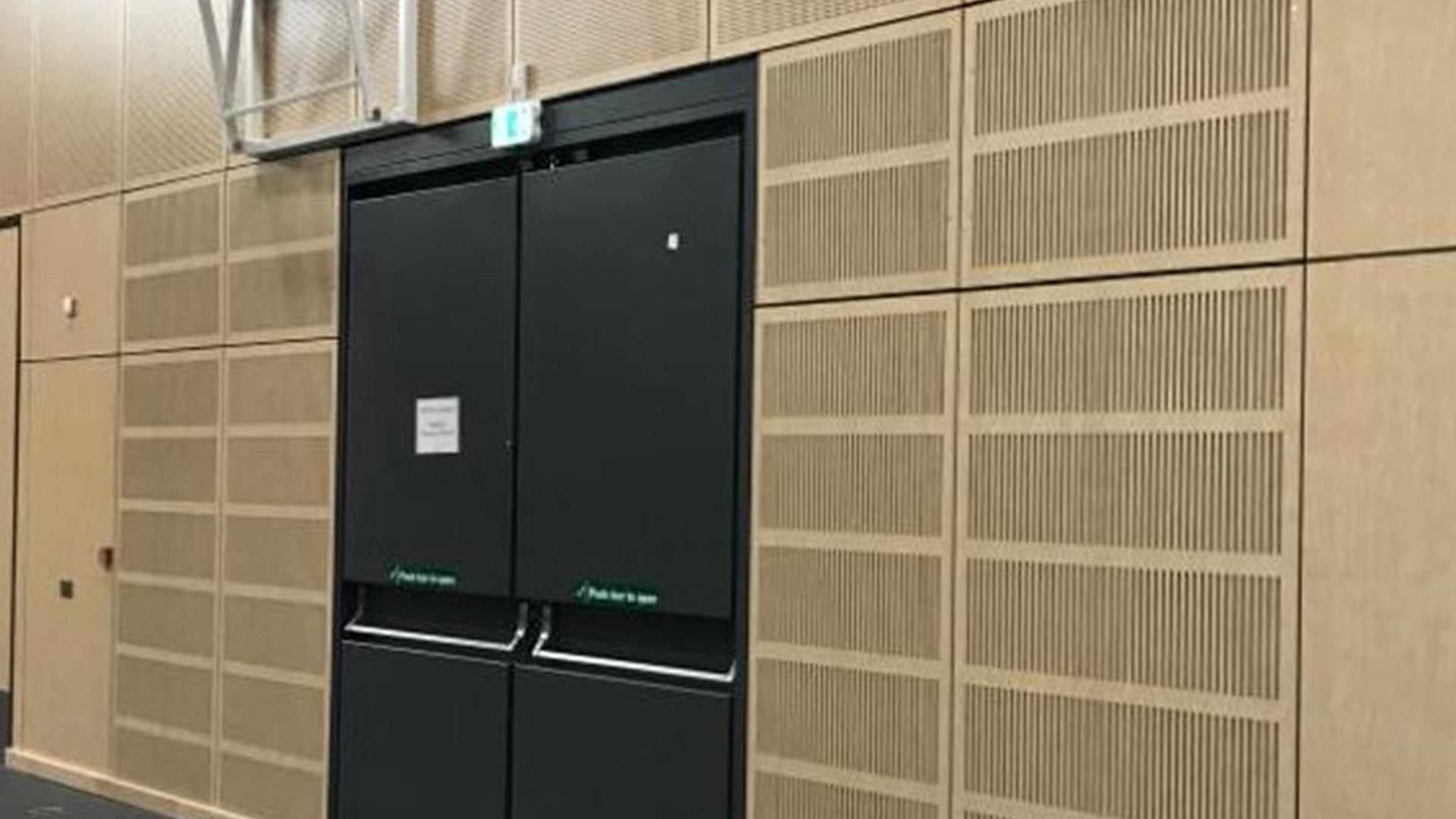

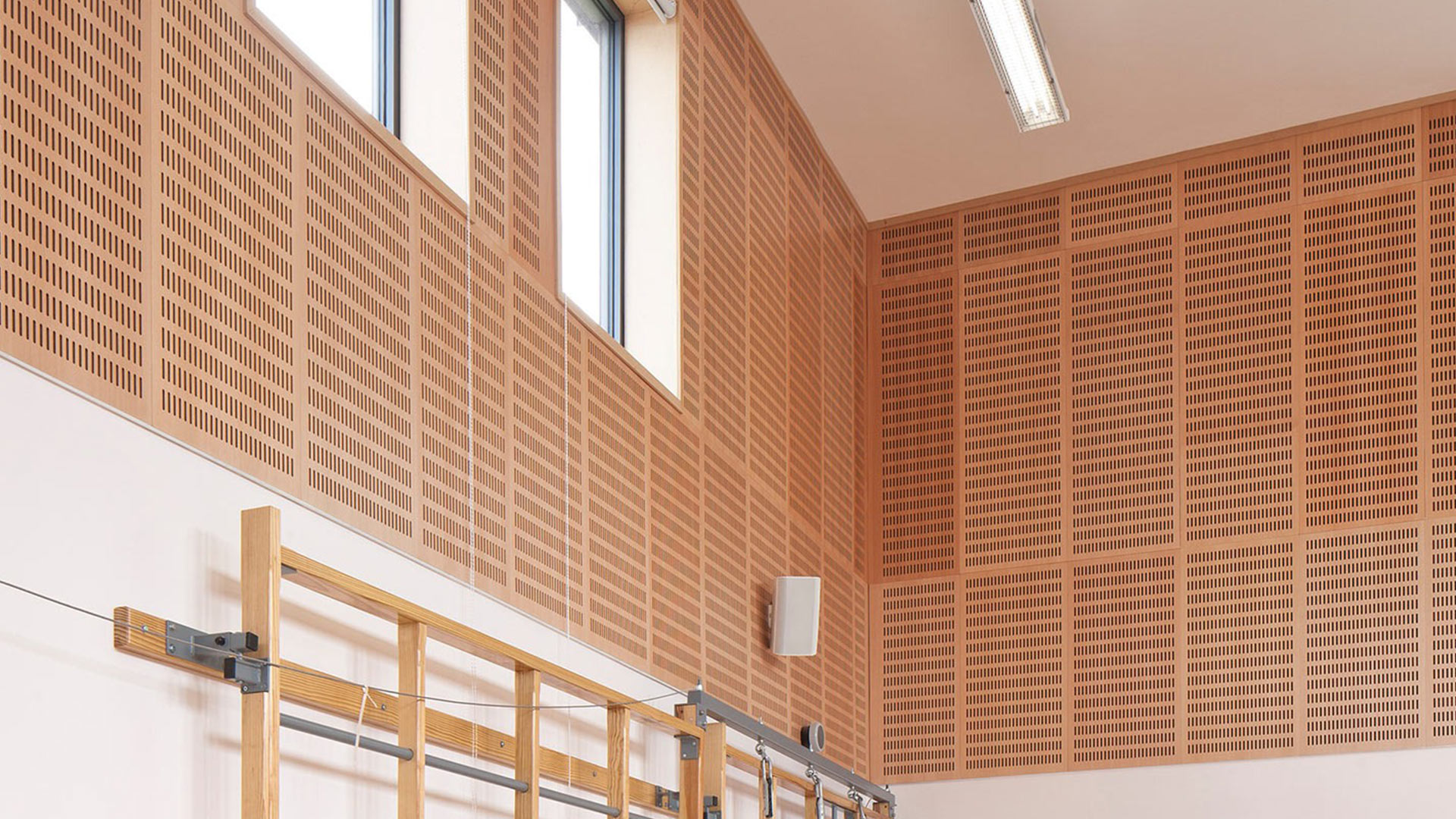

Perforated panels are manufactured in a range perforation patterns to create a level of open surface area to enable the absorption of sound.
Birch plywood or CPL/HPL Laminates and painted finishes available on FR MDF core.
Features
Standard Size Panels
Standard Configurations: 44mm w x 19mm d, 44mm w x 44mm d
3000mm x 1200mm / 2400mm x 1200mm / 1200mm x 1200mm
Perforations/Slots
6mm, 8mm, 10mm & 12mm or routed slots
Hole Centres
16mm, 32mm & 64mm (project specific size/patterns available)
Finishes
Birch Plywood, Veneers, CPL/HPL Laminates & Painted to std a RAL colour or to a Sport England colour
Fabric Backing
Black open weave/non-woven acoustically transparent backing
Panel Jointing
5-10mm between boards spliced with a black jointing strip.
Core Materials
FR Plywood or FR MDF
Fire Resistance
Class 1 or Class 0 (Euro-Class B) SSF
Insulation
Rockwool RWA45 30mm deep high density mineral wool
45kgs/per M3 – Euro class A1 Fire Performance
