Serenity Acoustic Rafts
PET Acoustic Rafts
Serenity Acoustic Rafts are designed to provide acoustic comfort by absorbing sound, helping to eliminate echo and reverberation. Additionally, sound is trapped in the void between the panel and ceiling surface.
Serenity Acoustic Rafts are made using our Eco Polyester material. The 24mm thick panels can be cut to any shape and size up to 1,200mm x 2,400mm with the assistance of our Design Team.
We also have a number of existing designs to choose from, all of which are available in over 20 colours.
Features
Standard Panel Sizes
Square: 600mm / 800mm /1000mm /1200mm
Rectangle: 600mm & 1200mm W x 1200mm /1800mm / 2400mm L
Circular: 600mm / 800mm / 1200mm
Bespoke designs available.
Core Material
Compressed Polyester
Acoustic Performance
Sound Absorption Class: 24mm = 1.00 NRC
Suspension
Gripple Wire Suspension Kits
Raft Thickness
24mm
Weight
24mm thick Serenity Range panels weigh 4.5kgs/m2
Fire Resistance
Part 1: Fire classification using data from reaction to fire tests, Class B
Designs
We offer a number of standard panel designs as seen below, with custom shapes and sizes available on request. Click here to speak to a member of the Creatif Wall team if you have a bespoke requirement.
Forest
800mm / 1,200mm x 800mm / 1,200mm
Square
600mm / 800mm / 1,200mm x 600mm / 800mm / 1,200mm
Rectangle
1,200mm / 1,800mm / 2,400mm x 600mm / 1,200mm
Cog
1,200mm (diameter)
Soft Square
600mm / 800mm / 1,200mm x 600mm / 800mm / 1,200mm
Soft Rectangle
1,200mm / 1,800mm / 2,400mm x 600mm / 1,200mm

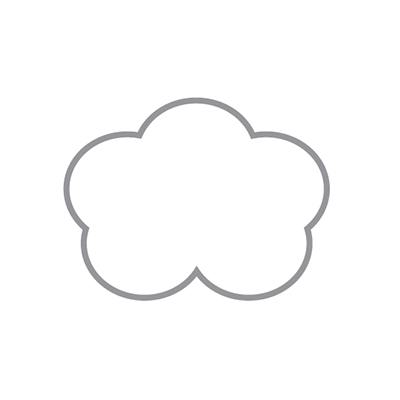

Cloud
1,000mm x 800mm
Polo
1,200mm (diameter), 400mm (hole)
Triangle
600mm / 800mm / 1,200mm x 600mm / 800mm / 1,200mm
Hexagon
600mm / 800mm / 1,200mm x 600mm / 800mm / 1,200mm
Leaf
600mm / 800mm / 1,200mm x 600mm / 800mm / 1,200mm
600mm / 800mm / 1,200mm x 600mm / 800mm / 1,200mm
Pebble
600mm / 800mm / 1,200mm x 600mm / 800mm / 1,200mm
Circle
600mm / 800mm / 1,200mm (diameter)

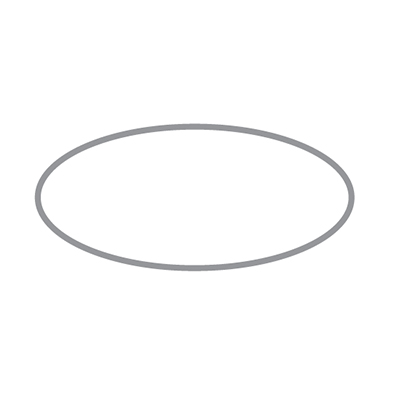

Elipse
2,400mm x 800mm / 1,200mm
Drop
2,400mm x 1,200mm
Diamond
600mm / 800mm / 1,200mm x 600mm / 800mm / 1,200mm
